WAGO 221 Series Double-Deck Splicing Connector with Levers

WAGO 221 Series Splicing Connector with Levers, 10 Connection Points

AE-2000-Untitled-Post-GWA-Formats-2000x1125-2

Pull the lever up, insert a conductor and push the lever back down – done! Wiring using the 221 Series Splicing Connectors with Levers is that simple. And now, the family is expanding! The new 221 Series Double-Deck Splicing Connector with Levers allows installers to easily connect up to ten conductors of the same potential without tools, thanks to its user-friendly design. It offers the same technical features and certifications as the 2-, 3-, and 5-conductor221 Series Splicing Connectors with Levers.

Your Benefits:

No loss of conductor connections compared to commoning methods
Compact, double-deck design saves space
Suitable for fine-stranded conductors from 0.14 to 4 mm², as well as stranded conductors from 0.2 to 4 mm²

Show product list

221系列阵容不断壮大

In Use: Wiring LED Spots

Do you want to wire up to ten conductors of the same potential in a space-saving way in a confined space? The 221 Series Double-Deck Splicing Connector with Levers makes this possible intuitively and without tools. How? Our experts will demonstrate in the video.

MM-510511_new_website_page_10-Leiter_221_drei-Klemmen_2000x1125

One Terminal Block – Three Variants

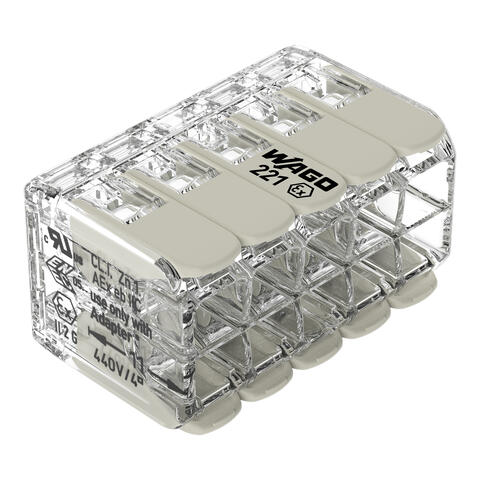

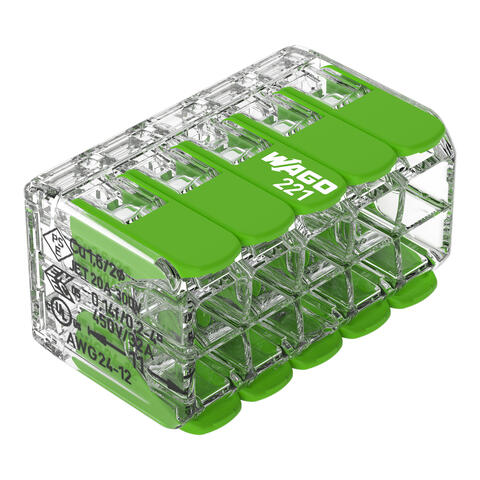

The 221 Series Double-Deck Splicing Connector with Levers is available in the classic version with orange levers. It also comes with Ex certification, identifiable by its light gray levers, suitable for hazardous areas. Additionally, a Green Range edition will be available for those seeking higher sustainability requirements (coming at the end of Q2/2025).

The Right Adapter for Every Application

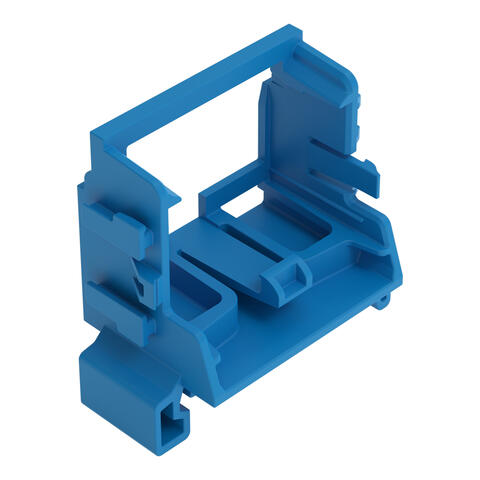

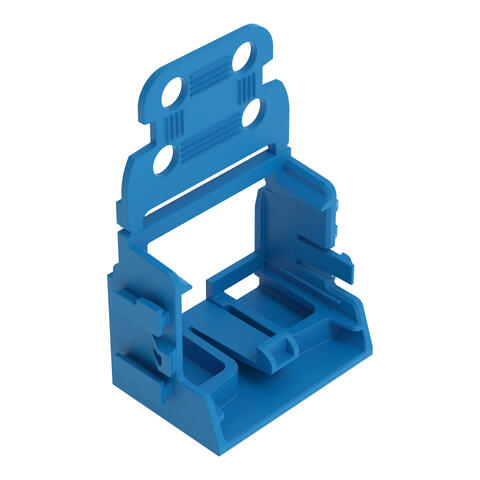

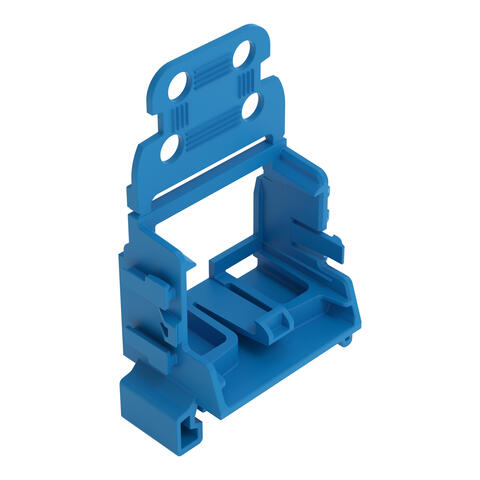

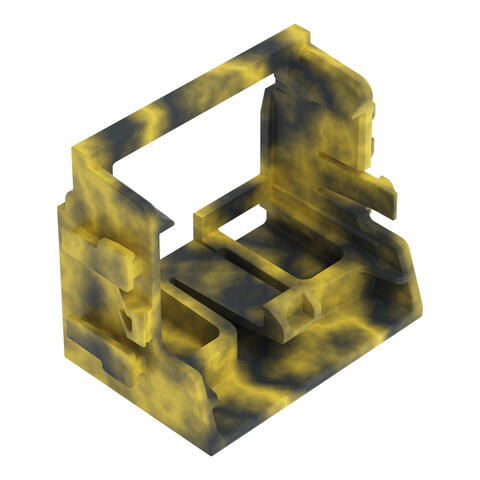

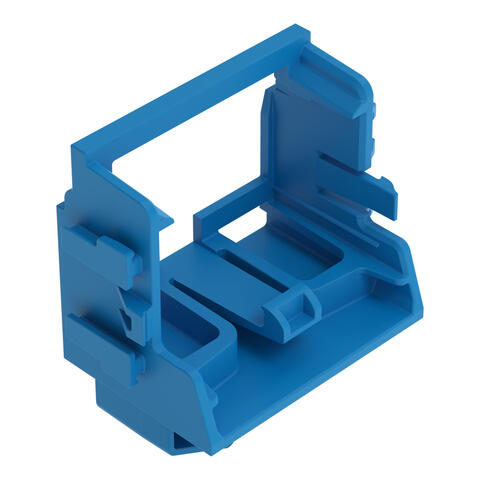

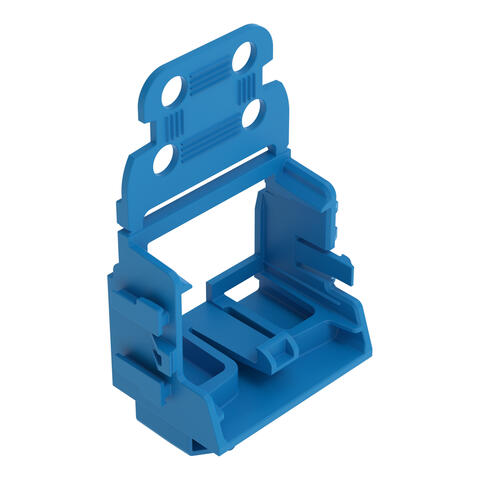

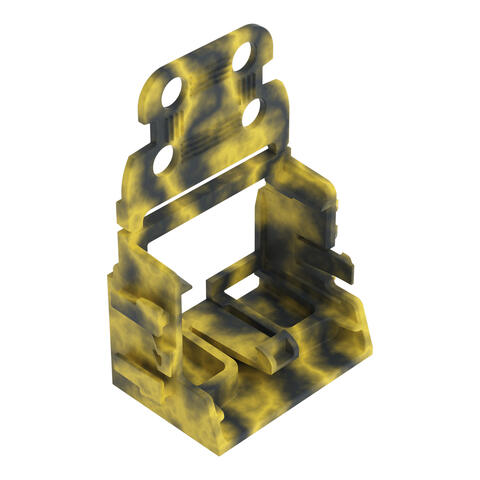

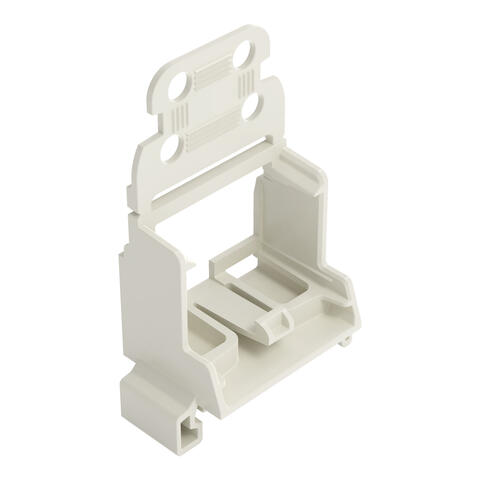

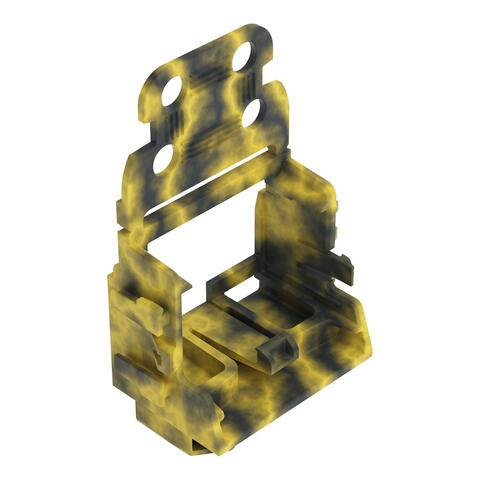

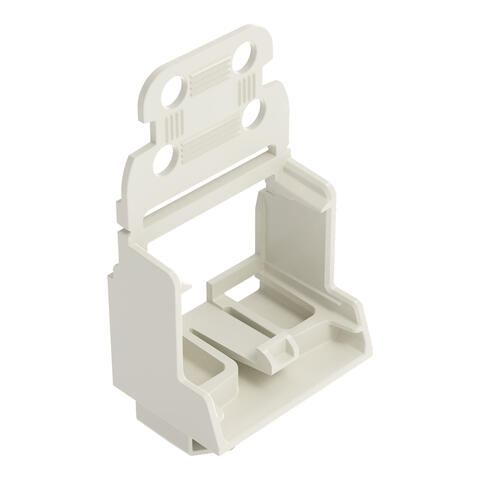

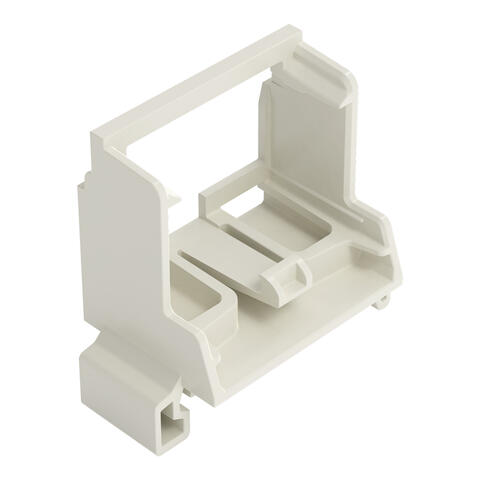

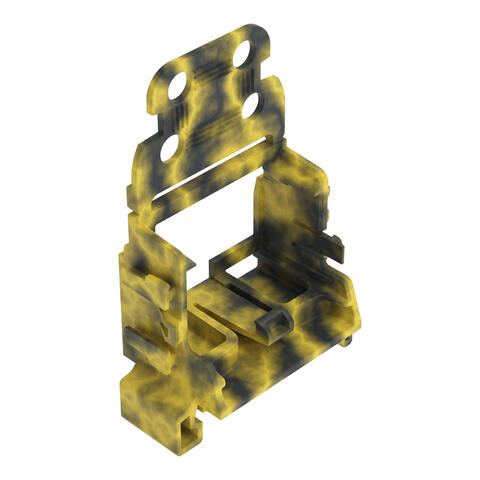

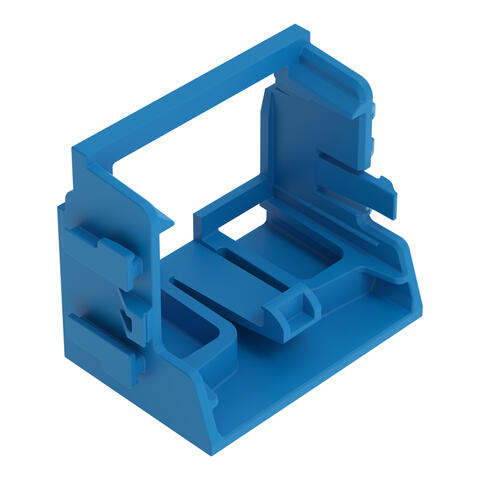

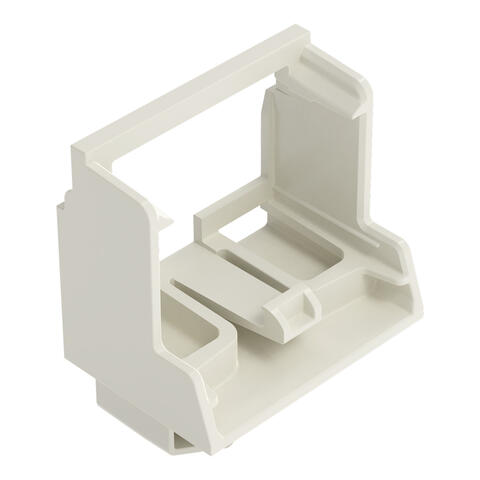

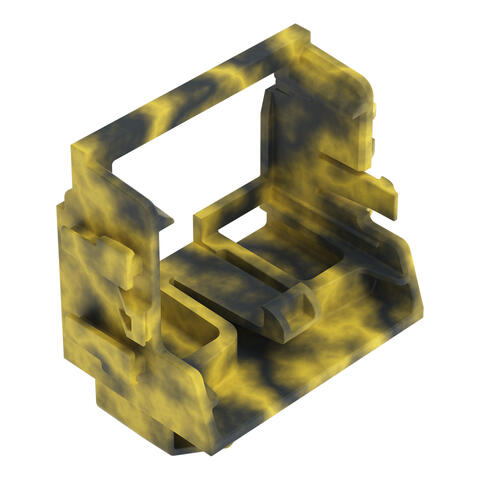

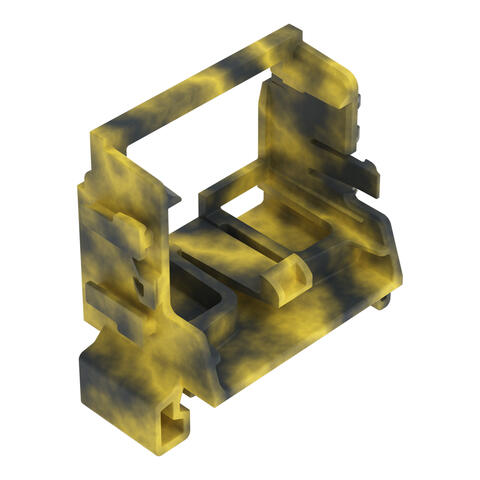

The 221 Series Double-Deck Splicing Connector with Levers offers a variety of accessories for mounting on DIN rails, including snap-in mounting feet, strain relief or dovetail assembly. These adapters are tailored to the design of the splicing connector, ensuring a perfect fit that allows the connector to snap securely into place. When combined with these adapters, wiring becomes especially convenient. Accessories come in white, blue and gray-yellow.

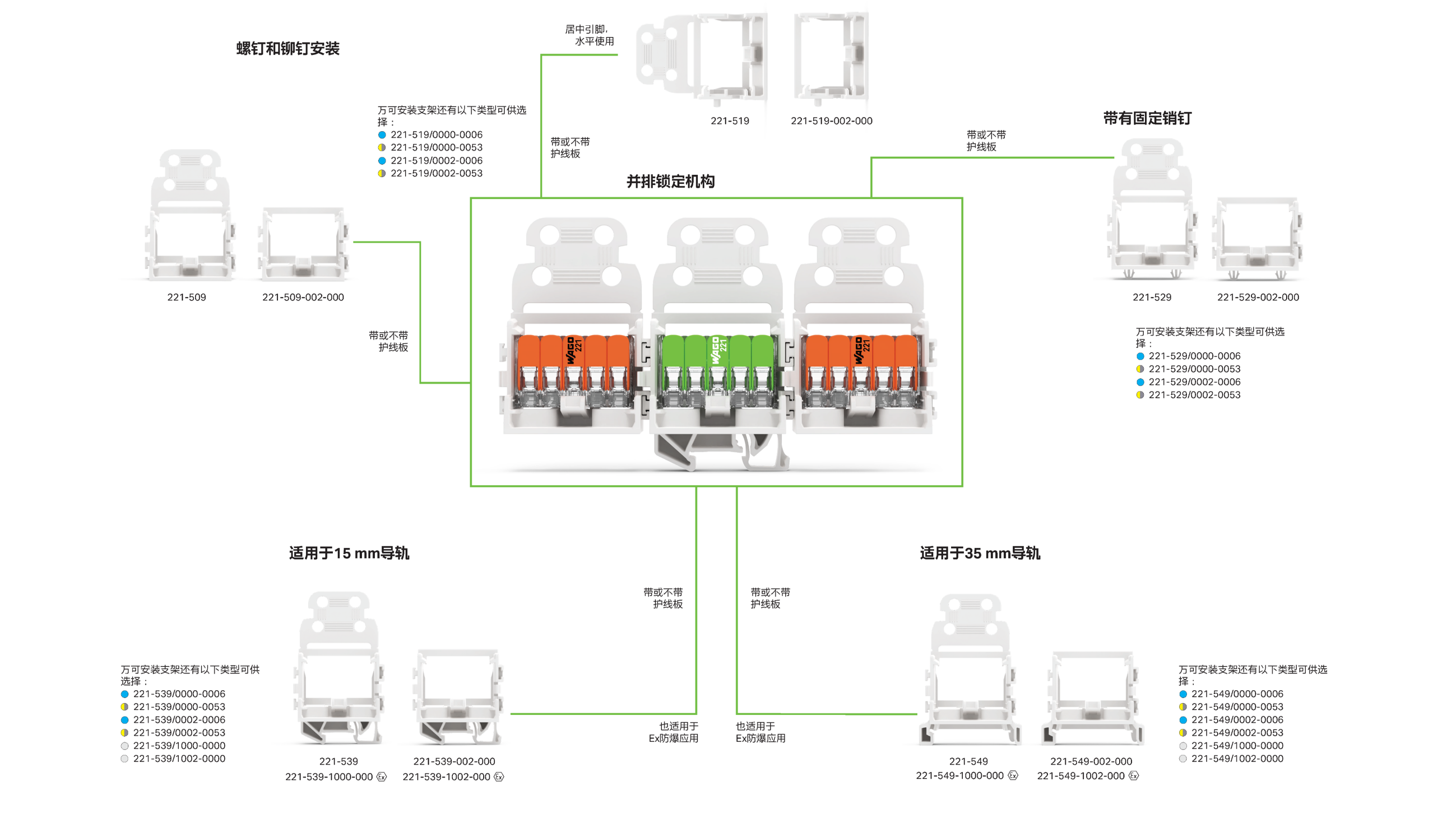

适用于221系列10线导线连接器的新型万可适配器

楔形接合器布置

DIN导轨适配器

固定销钉

安装方式

护线板

危险区域

DIN导轨适配器

10线连接器的实际应用

Tutorial: How to Use the Connector

In this video, our experts explain how to use the 10-wire connector and highlight its key features. They also provide a detailed overview of the versatile carriers and describe various application scenarios.

Versatile Application Options

The WAGO 221 Series Double-Deck Splicing Connector with Levers is an essential tool for any electrician. It’s perfect for wiring distribution boxes, especially in building installations such as roller shutter controls, heating circuit distributors, suspended ceilings, safety systems or lighting groups. A key benefit is that ten conductors of the same potential no longer require jumpers, meaning no connections are lost. The connector can be wired on-site or pre-wired during planning. This connector isn’t just ideal for distribution boxes but also works great for wiring inside devices.

Download product flyer now

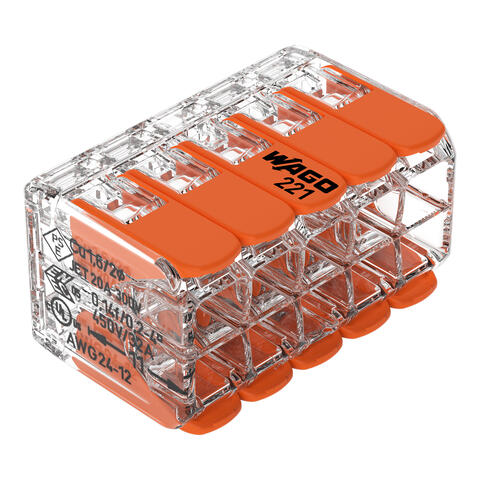

型号 221-420

带有操作杆的导线连接器; 适于多种导线类型; max. 4 mm²; 10线; 透明外壳; 工作环境温度：最大85 °C（T85）; 4,00 mm²; 透明
